Vibratory Feeders

Vibratory bowl feeders are the most versatile small parts orienting feeder on the market today. Built with standard components and custom-tooled to meet the needs of your application, our vibratory feeders are able to feed many different types of parts and can meet complex orientation requirements. Our vibratory feeders are available in traditional straight-wall design with outside tooling, or inside-tooled cascade or conical styles to provide even more parts feeding versatility. They are offered as simple standalone feeders, complete turnkey part feeding systems, or anything in between.

Features

Welded stainless steel construction
Multiple finish & coating options to enhance feeding, minimize part wear, and meet medical and FDA specifications
Sorting features available to eliminate bad parts from your production line
Vision systems available to sort or orient parts based on color or internal features
Machined tooling available for a level of precision & documentation that can't be attained with traditional feeder fabrication methods

Downloads

   Performance Feeders Brochure
   Performance Feeders Tri-Fold Brochure
  Vibratory Feeder Brochure

Conical and Cascade Bowls
Straight-wall Bowls
Optional Components

Conical and Cascade Bowls Straight-wall Bowls Optional Peripheral Components

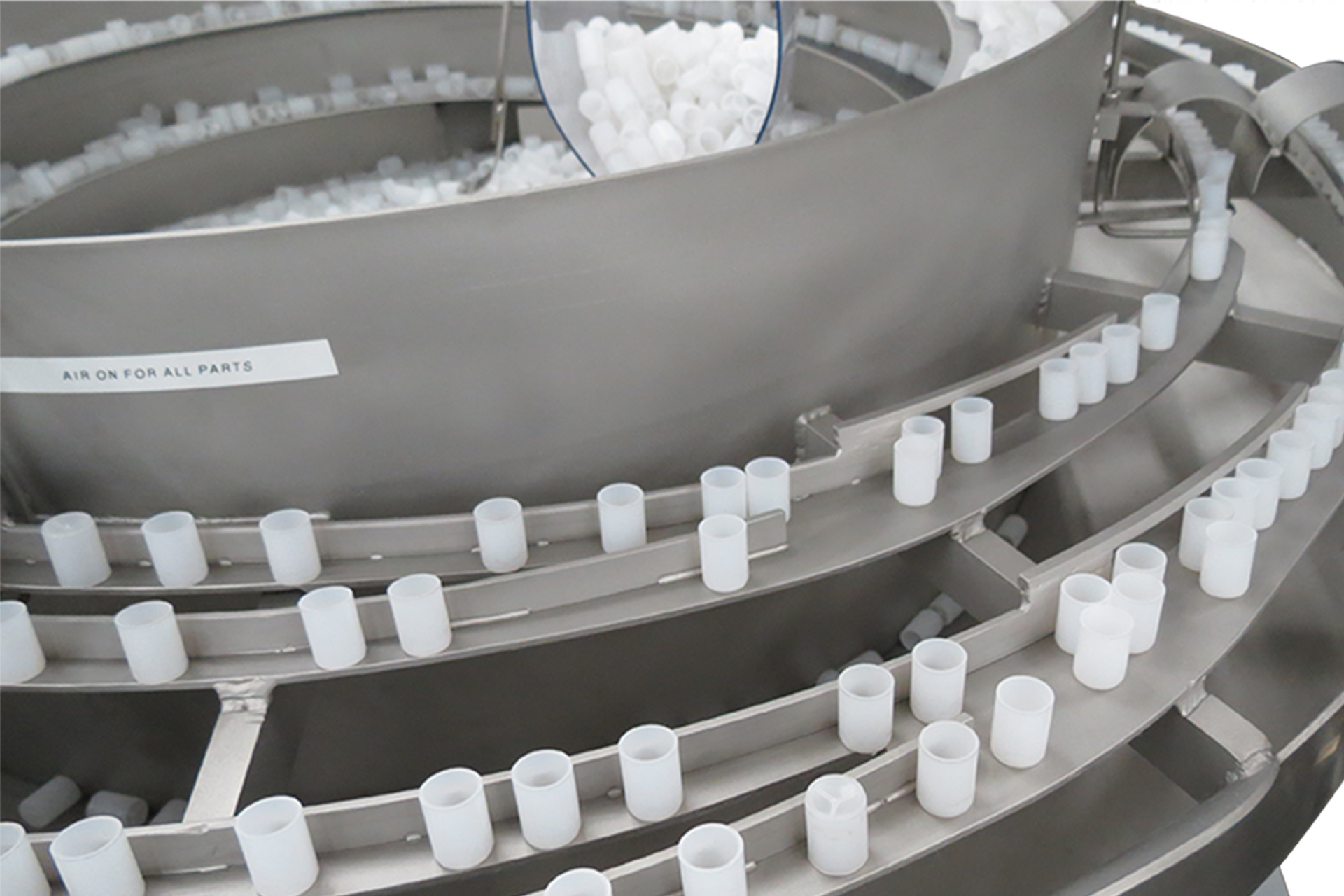

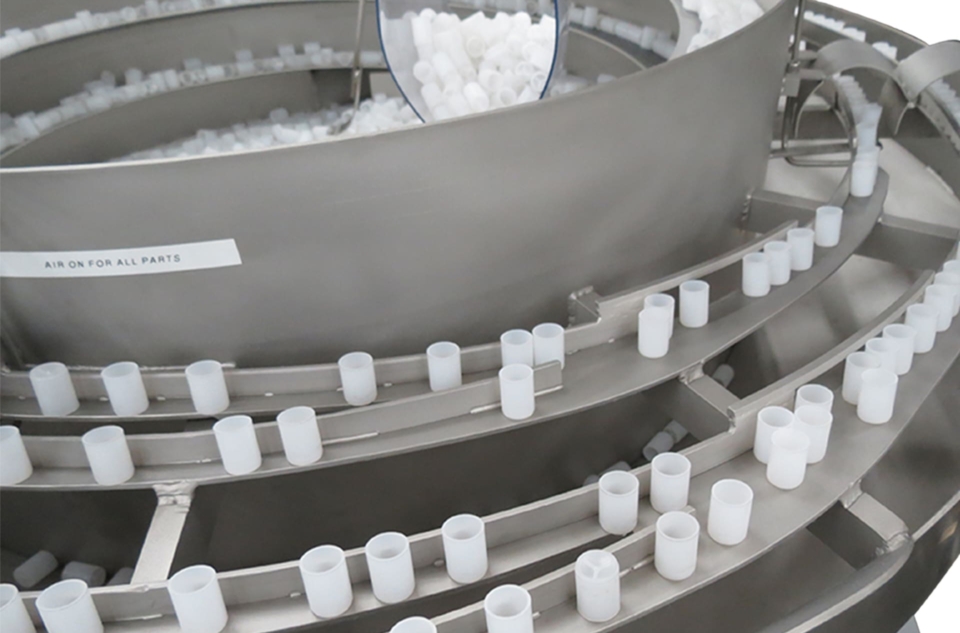

Conical and Cascade Bowls

Parts in conical and cascade bowls are oriented inside the bowl wall, which reduces part recirculation and therefore part abrasion, and allows for smaller footprints. Ideal for parts with simple geometries, conical and cascade bowls feature open, cavity-free designs that make them excellent choices for pharmaceutical, food processing and clean room applications.

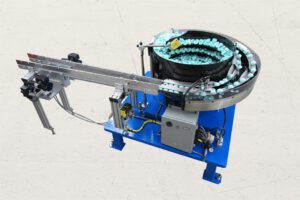

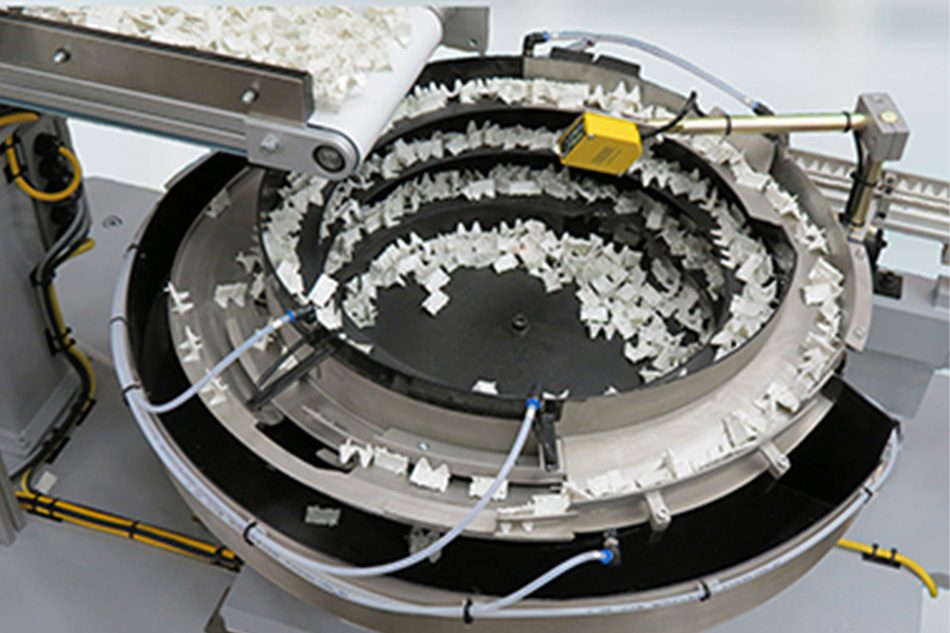

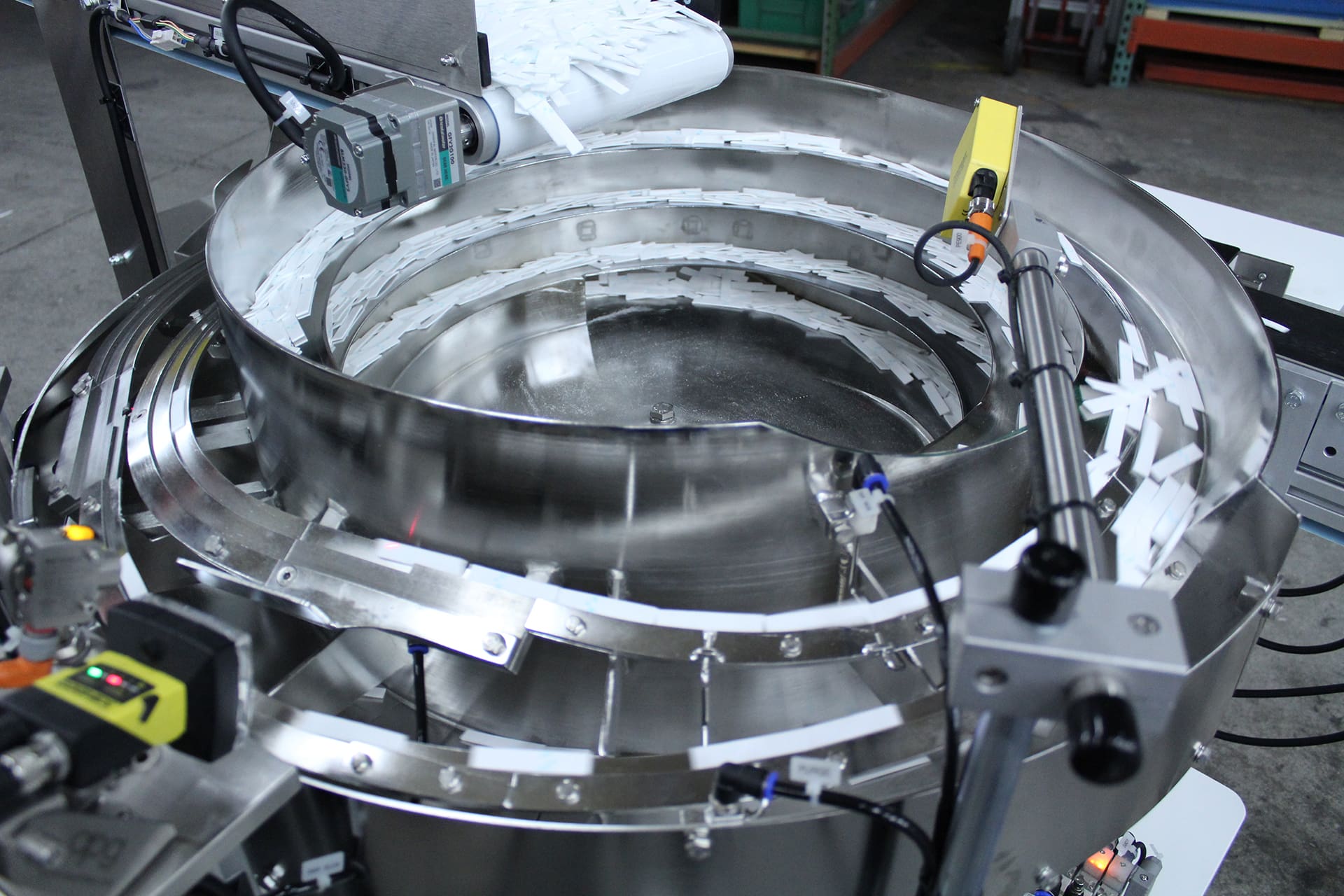

Straight-wall Bowls

Parts in straight-wall bowls are usually oriented outside of the bowl wall, over a return pan that catches rejected parts and returns them to the inside of the bowl for recirculation. Known as "outside tooling", this offers a degree of flexibility and complexity that isn't found in other types of orienting feeders, allowing capabilities such as orientation of complex parts, feeding families of parts and rejecting bad parts from the production line.

Optional Peripheral Components

We offer a complete line of peripheral components to complement our vibratory feeders, allowing us to offer anything from simple orienting feeders to complete turnkey parts feeding systems, including:

Prefeeders (vibratory hoppers and bulk elevators) which provide for bulk storage of parts, automatic metering of parts into orienting feeders and floor-level loading of parts.
Linear feeders (vibratory inline tracks, gravity tracks, belt conveyors and air tracks) which provide for transfer and storage of oriented parts between orienting feeders and your equipment.
Escapement and part isolation mechanisms that isolate a single or multiple parts from the queue of oriented parts and position them for placement into your assembly operation.
Sensors that control the part quantities in orienting feeders, prefeeders and linear feeders, and communicate feed system status to your machine.
Standard and custom control packages.
Base plates and tables with all components mounted for a turn-key installation.
Multiple options for enclosures for noise and dust control.
