Model 55 Conveyor Belt Systems
Light duty low profile center-drive and end-drive conveyors designed for long life, maximum performance and low maintenance.
Some of the standard features include:
- Structural Aluminum Extrusion Framing: The backbone of our conveyor, quality structural aluminum framing allows for maximum rigidity and a high degree of flexibility in design and addition of bolt on features
- High Wear Belt running Surface: 16 Ga. stainless steel wearplates provide years of trouble free low maintenance run time
- Sealed Bearings: Quality permanently sealed and lubricated deep groove ball bearings keep your Conveyor running with no maintenance for the life of the bearing
- Machined Bolt-On Components: Aluminum anodized conveyor components machined to provide high quality long lasting hassle free service
- Crowned Pulleys: Precision machined 50mm diameter pulleys allow for easy belt tracking.
View Custom Conveyor System Applications
&Model 55 Belt Conveyor Product Card

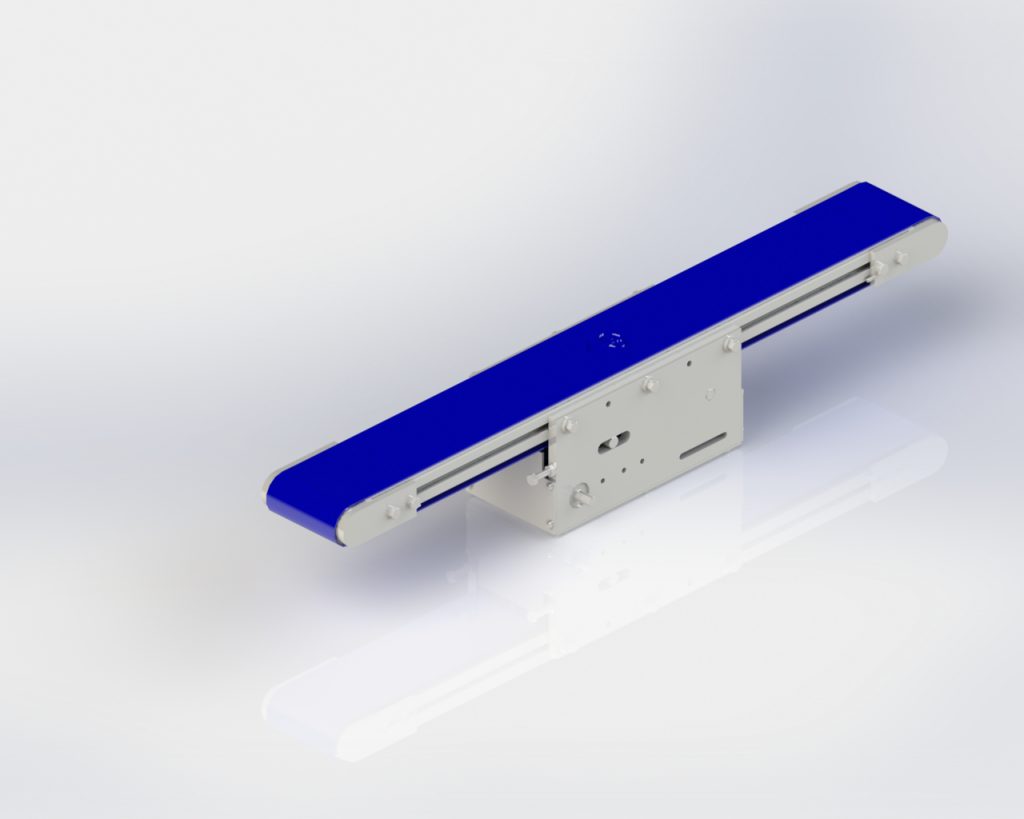

Light duty low profile center drive conveyors are suited for applications where it may not be possible to adjust the end blocks for belt tensioning or may require a tighter tolerance on end to end length. Moveable center drives can be moved to any point along the conveyor frame to accommodate interferences by merely loosening a few fasteners and sliding into position
Center Drive Specifications:
12 Standard widths available: 40mm, 80mm, 120mm, 160mm, 200mm, 240mm, 280mm, 320mm, 400mm, 480mm, 560mm, 640mm
Lengths: 660mm - 6000mm in 1mm increments
Speeds: up to 350 FPM* possible
Pulley Diameter: 50mm
Load Capacity: up to 68kg /150lbs**
* Actual Conveyor speeds are determined by number of variables including the torque limitations of the desired drive types selected.
** Load capacities may also be limited by conveyor width
** Load capacities may also be limited by conveyor width
Center Drive - Drive Options:
Side Mount Center Drive: AC Fixed Speed motor
- Speeds available: 4 - 93 FPM
- Voltages available: 115/1/60, 208-230/3/60, 460/3/60
Side Mount Center Drive: AC Variable Speed motor
- Speeds available: 2 at 40Hz to 130 FPM at 90 Hz
- Voltages available: 230/3/60, 460/3/60
Note: Motor can run variable speed. Only operate between 40-90Hz.
*Control for variable speed sold separately.
*Control for variable speed sold separately.
Bottom Mount Center Drive: AC Fixed Speed motor
- Speeds available: 3 - 175 FPM
- Voltages available: 115/1/60, 230/460/3/60
Bottom Mount Center Drive: AC or DC Variable Speed motor
- Speeds available: .1 - 260 FPM
- Voltages available: 130 VDC or 230/460/3/60VAC, AC units inverter duty and rated for 10-90 Hz operation.
*Controllers sold separately.
Try our new conveyor configurator! Choose your desired conveyor options then download detailed specifications for a conveyor tailored to your specific needs. After you’ve configured your conveyor, you will be able to download a product datasheet in PDF format that includes a live 3D model, product specifications and ordering information for your conveyor. You will also be able to download a working 3D solid model in any of 150 different CAD file formats to incorporate into your machine layout.
Light duty low profile end drive conveyors designed for long life, maximum performance and low maintenance.
End Drive Specifications
- 12 Standard widths available: 40mm, 80mm, 120mm, 160mm, 200mm, 240mm, 280mm, 320mm, 400mm, 480mm, 560mm, 640mm
- Lengths: 380mm - 3048mm in 1mm increments
- Speeds: up to 350 FPM* possible
- Pulley Diameter: 50mm
- Load Capacity: up to 68kg /150lbs**
- Drive Options: Available as AC with a large selection of speeds with or without controls to suit your application
* Actual Conveyor speeds are determined by a number of variables including torque limitations of the desired drive types selected.
** Load capacities may also be limited by conveyor width
** Load capacities may also be limited by conveyor width
End Drive - Drive Options
Side Mount End Drive: Brushless DC Variable Speed motor
Speeds available: 1-68 FPM. Includes motor controller for speed adjustment
Side Mount End Drive: AC Fixed Speed motor
- Speeds available: 4 - 93 FPM
- Voltages available: 115/1/60, 208-230/3/60, 460/3/60
Side Mount End Drive:AC Variable Speed motor
- Speeds available: 2 at 40Hz to 130 FPM at 90 Hz
- Voltages available: 230/3/60, 460/3/60
Note: Motorcan run variable speed. Only operate between 40-90Hz.
*Control for variable speed sold separately.
*Control for variable speed sold separately.
Top Mount Driven End Drive:AC Fixed Speed motor
- Speeds available: 3 - 175 FPM
- Voltages available: 115/1/60, 230/460/3/60
Top Mount End Drive: AC or DC Variable Speed motor
- Speeds available: .1 - 260 FPM
- Voltages available: 130 VDC or 230/460/3/60VAC
*Control for variable speed sold separately.
Bottom Mount End Drive: AC Fixed Speed motor
- Speeds available: 3 - 175 FPM
- Voltages available: 115/1/60, 230/460/3/60
Bottom Mount End Drive: AC or DC Variable Speed motor
- Speeds available: .1 - 260 FPM
- Voltages available: 130 VDC or 230/460/3/60VAC
Try our new conveyor configurator! Choose your desired conveyor options then download detailed specifications for a conveyor tailored to your specific needs. After you’ve configured your conveyor, you will be able to download a product datasheet in PDF format that includes a live 3D model, product specifications and ordering information for your conveyor. You will also be able to download a working 3D solid model in any of 150 different CAD file formats to incorporate into your machine layout.
High quality urethane belt selections available in low, medium and high friction covers are standard. Doesn’t meet your requirements? Contact us. We offer belting with many different textures and materials to suit your application. We would be happy to help determine a belt that will fit your application needs, including cleated end drive belts for part elevation.
Model 55 Low Friction Conveyor Belting
- Top Side Material: Urethane impregnated polyester
- Bottom Side Material: Urethane impregnated polyester
- Maximum Operating Temp: 176℉ F (80℉ C)
- Chemical Resistance: Good
- FDA Approved: Yes
- Anti-Static: Yes
- Coefficient of Friction: Very Low
- Color: Off White
- Cleats: No
- Splice Types: Endless, Plastic Lace, Stainless Steel Clipper Lace
- Applications: Packaging, Accumulation
- Top Side Material: Urethane impregnated polyester
- Bottom Side Material: Urethane impregnated polyester
- Maximum Operating Temp: 176℉ F (80℉ C)
- Chemical Resistance: Good
- FDA Approved: Yes
- Anti-Static: Yes
- Coefficient of Friction: Very Low
- Color: Blue
- Cleats: No
- Splice Types: Endless, Plastic Lace, Stainless Steel Clipper Lace
- Applications: Packaging, Accumulation
- Top Side Material: Urethane
- Bottom Side Material:</strong >Polyester
- Maximum Operating Temp: 194℉ F (90℉ C)
- Chemical Resistance: Good
- FDA Approved: Yes
- Anti-Static: Yes
- Coefficient of Friction: Low
- Color: Green
- Cleats: No
- Splice Types: Endless, Plastic Lace, Stainless Steel Clipper Lace
- Applications: General Conveying, Accumulation
- Top Side Material: Urethane
- Bottom Side Material: Polyester
- Maximum Operating Temp: 176℉ F (80℉ C)
- Chemical Resistance: Good
- FDA Approved: Yes
- Anti-Static: Yes
- Coefficient of Friction: Low
- Color: Green
- Cleats: No
- Splice Types: Endless, Plastic Lace, Stainless Steel Clipper Lace
- Applications: General Conveying, Accumulation
Model 55 Medium Friction Conveyor Belting
- Top Side Material: Urethane
- Bottom Side Material: Polyester
- Maximum Operating Temp: 176℉ F (80℉ C)
- Chemical Resistance: Good
- FDA Approved: Yes
- Anti- Static: No
- Coefficient of Friction: Medium
- Color: White
- Cleats: Yes
- Cleat Size: 3mm wide x 20mm, 30mm, 40mm and 60mm
- Cleat Color: White or Blue
- Splice Types: Endless, Plastic Lace, Stainless Steel Clipper Lace
- Applications: General Conveying
- Top Side Material: Abrasion Resistant Urethane
- Bottom Side Material: Polyester
- Maximum Operating Temp: 176℉ F (80℉ C)
- Chemical Resistance: Good
- FDA Approved: No
- Anti-Static: Yes
- Coefficient of Friction: Medium
- Color: Black
- Cleats: Yes
- Cleat Size: 3mm wide x 20mm, 30mm, 40mm and 60mm
- Cleat Color: White or Blue
- Splice Types: Endless, Plastic Lace, Stainless Steel Clipper Lace
- Applications: General Conveying
- Top Side Material: Urethane
- Bottom Side Material: Polyester
- Maximum Operating Temp: 176℉ F (80℉ C)
- Chemical Resistance: Good
- FDA Approved: Yes
- Anti- Static: Yes
- Coefficient of Friction: Medium
- Color: Black
- Cleats: Yes
- Cleat Size: 3mm wide x 20mm, 30mm, 40mm and 60mm
- Cleat Color: White or Blue
- Splice Types: Endless, Plastic Lace, Stainless Steel Clipper Lace
- Applications: General Conveying
Model 55 Friction Conveyor Belting
- Top Side Material: Urethane
- Bottom Side Material: Polyester
- Maximum Operating Temp: 176℉ F (80℉ C)
- Chemical Resistance: Good
- FDA Approved: Yes
- Anti-Static: No
- Coefficient of Friction: High
- Color: White
- Cleats: Yes
- Cleat Size: 3mm wide x 20mm, 30mm, 40mm and 60mm
- Cleat Color: White or Blue
- Splice Types: Endless, Plastic Lace, Stainless Steel Clipper Lace
- Applications: General Conveying, Slight Incline or Decline
- Top Side Material: Urethane Structured
- Bottom Side Material: Polyester
- Maximum Operating Temp: 176℉ F (80℉ C)
- Chemical Resistance: Good
- FDA Approved: Yes
- Anti-Static: No
- Coefficient of Friction: High
- Color: Blue
- Cleats: Yes
- Cleat Size: 3mm wide x 20mm, 30mm, 40mm and 60mm
- Cleat Color: White or Blue
- Splice Types: Endless, Plastic Lace, Stainless Steel Clipper Lace
- Applications: General Conveying, Slight Incline or Decline
Try our new conveyor configurator! Choose your desired conveyor options then download detailed specifications for a conveyor tailored to your specific needs. After you’ve configured your conveyor, you will be able to download a product datasheet in PDF format that includes a live 3D model, product specifications and ordering information for your conveyor. You will also be able to download a working 3D solid model in any of 150 different CAD file formats to incorporate into your machine layout.
Floor Stands with Leveling Feet or Casters
Leg Sets
Available in heights from 350mm - 1524mm with three base options:
Adjustable 3"
Adjustable 6"
FixedThree types of feet are available:
Leveling Foot
Leveling Screw
Locking CasterMounting Angles & Return Roller Assemblies
Sets conveyor at an 83mm height from the top of the belt:
Mounting Angle
Return Roller Assembly
Side Rails
Side Rail Options
-
Integral fixed 16 ga.stainless steel side rail: Available in heights of 13mm up to 76mm tall
-
2way - Up/Down adjustable side rail: Available with round or 1" Flat Tee face steel backed UHMW
-
4way - Up/Down In/Out adjustable side rail: Available with round or 1" Flat Tee face steel backed UHMW
Try our new conveyor configurator! Choose your desired conveyor options then download detailed specifications for a conveyor tailored to your specific needs. After you’ve configured your conveyor, you will be able to download a product datasheet in PDF format that includes a live 3D model, product specifications and ordering information for your conveyor. You will also be able to download a working 3D solid model in any of 150 different CAD file formats to incorporate into your machine layout.
