PFSM Mini-Step Feeder

"Single-Step" step feeder with 4" wide step and 200 cu. in. integrated hopper bin. A standard screw escapement package is available, making the PFSM easily integrated into automatic screwdriving applications.

Specifications

  • Input: 110, 220 VAC for controls
  • Step Materials: Teflon hard coat anodized aluminum, hardened, ground and plated steel
  • Step Thicknesses: 3/8"-1/2", determined by the size of the parts being fed
  • Step Width: 4"
  • Step Stroke: 5"
  • Bin Size: 200 cu. in. capacity

PFSM Configuration

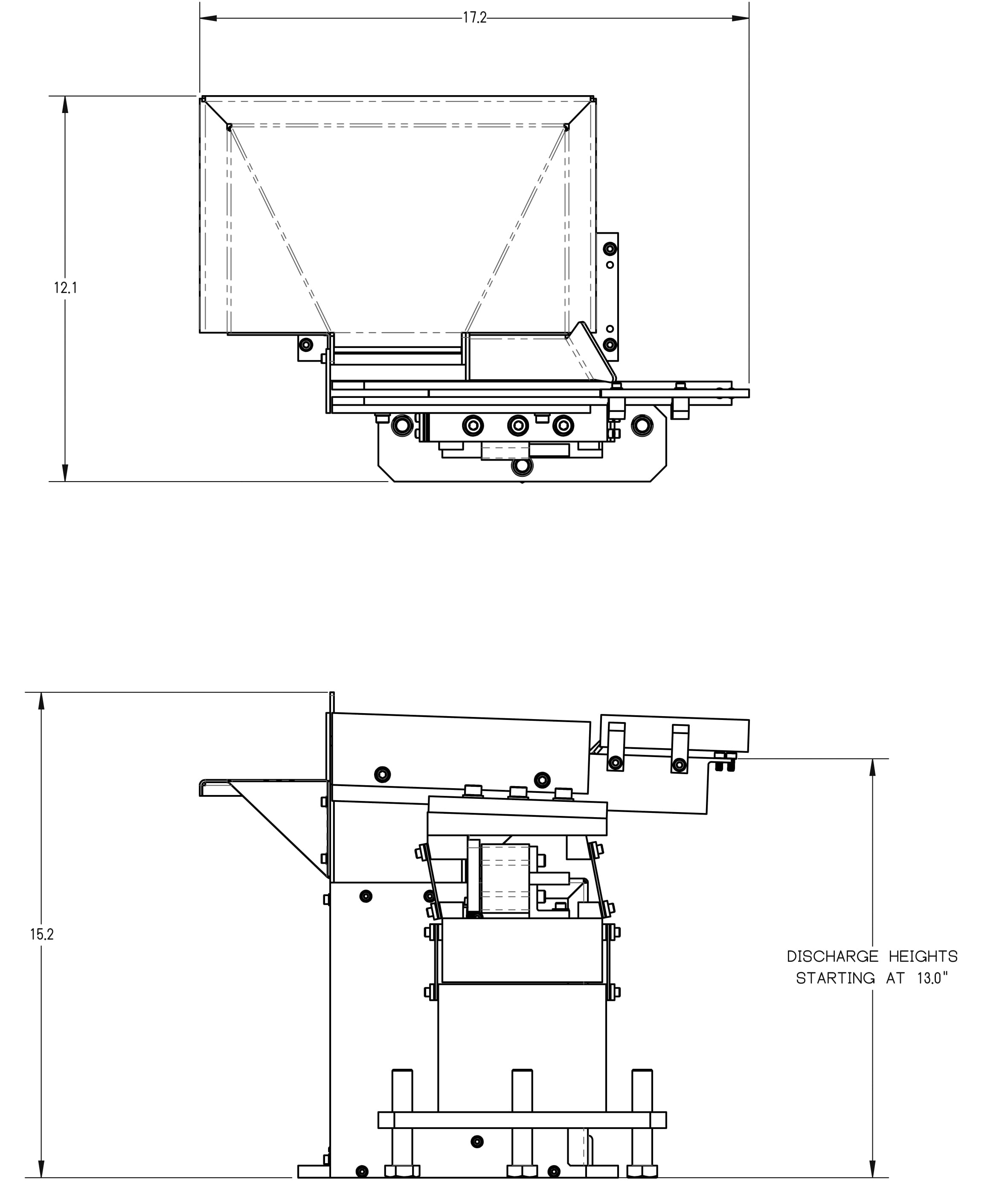

Performance Feeders PFSM Dimensions
