Z Belt Conveyor for Automotive Part

Jump to: System Specifications || Quote Request Form

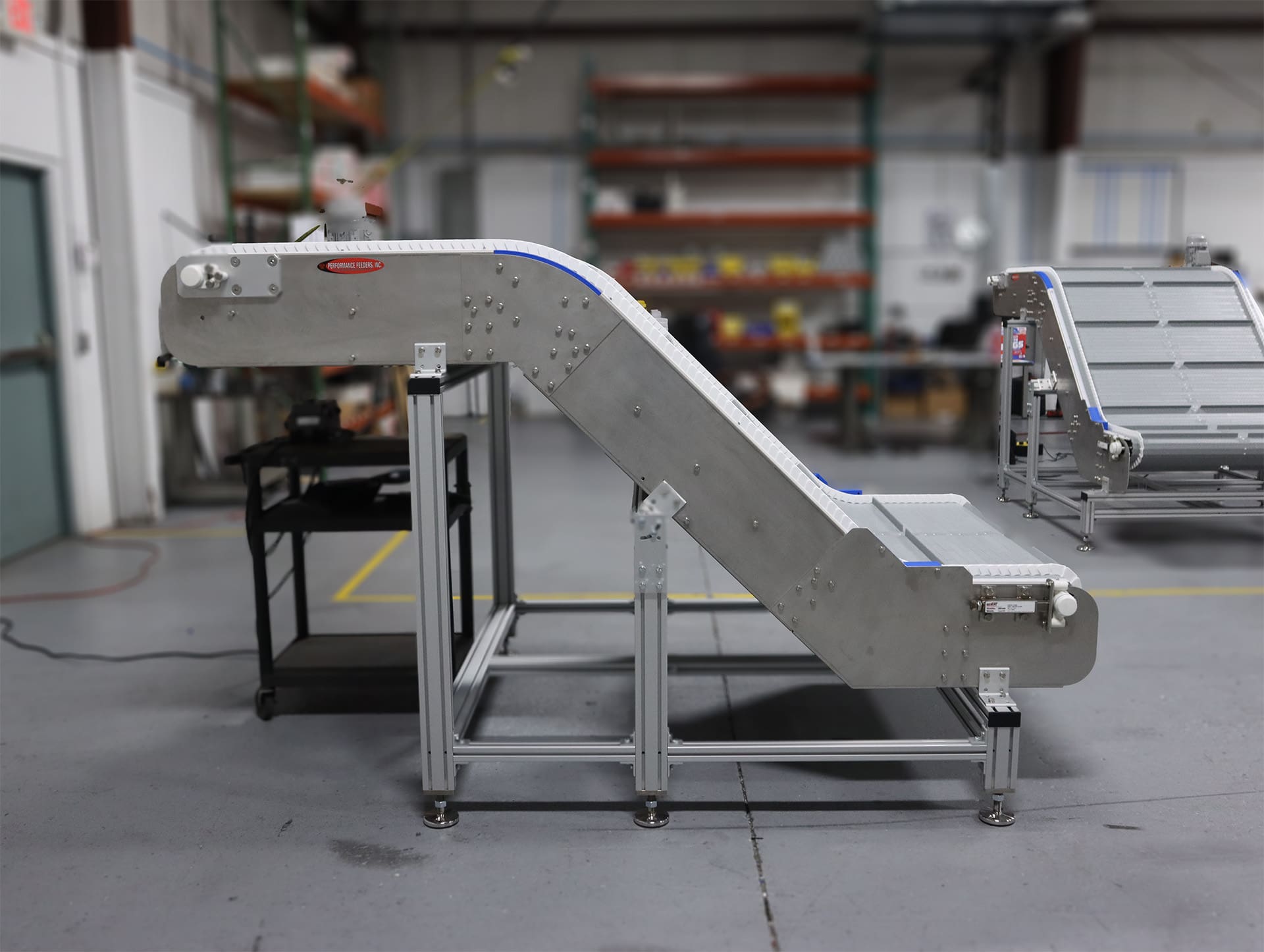

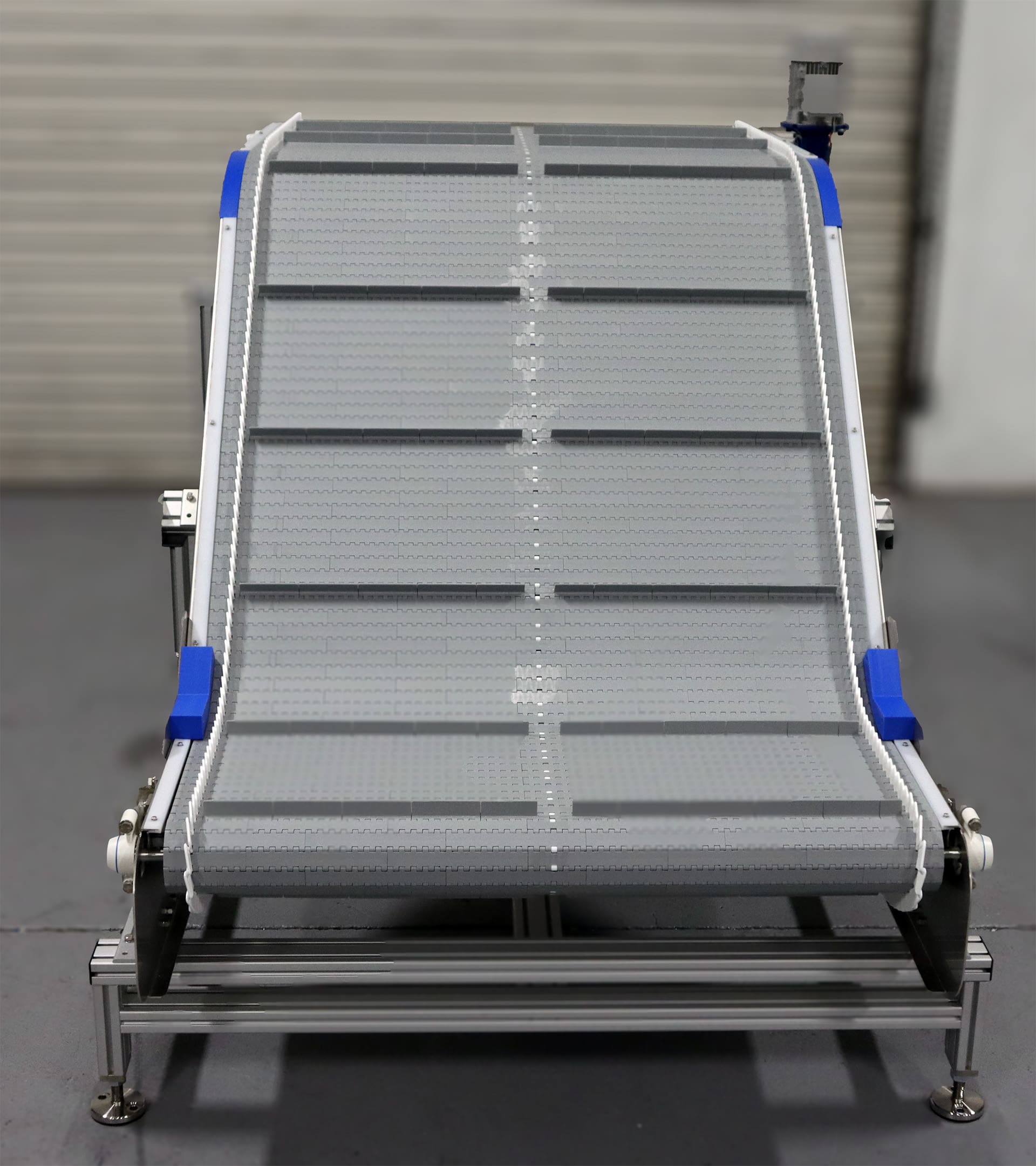

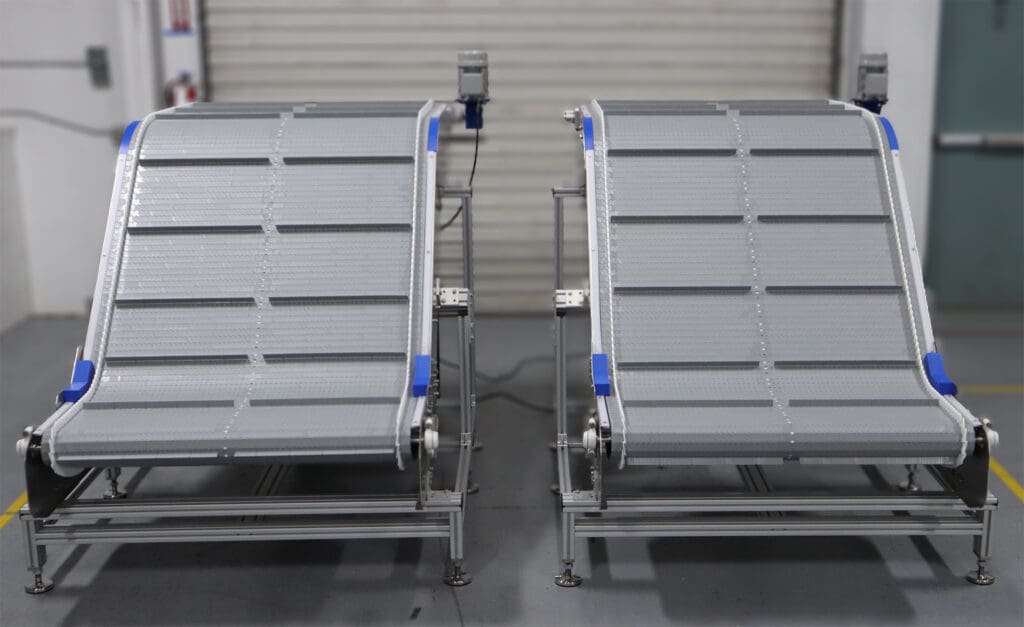

This Heavy-duty Z Style Conveyor was constructed as a feeding solution for an automotive manufacturer. The conveyance system transferred a tubular metal part to the customer’s receiving assembly equipment located at a higher elevation.

Utilizing only 84’ linear inches, the solution reduced the amount manufacturing floor space required to transition parts to a discharge height of 73.5”.

System Specifications

Conveyor:

• Heavy duty end-driven custom conveyor 44.4” wide x 121.5” long
• Conveyor length at entrance 15” long
• Conveyor Incline length 40° 30.6” long
• Conveyor length at exit 30” long

Belt:

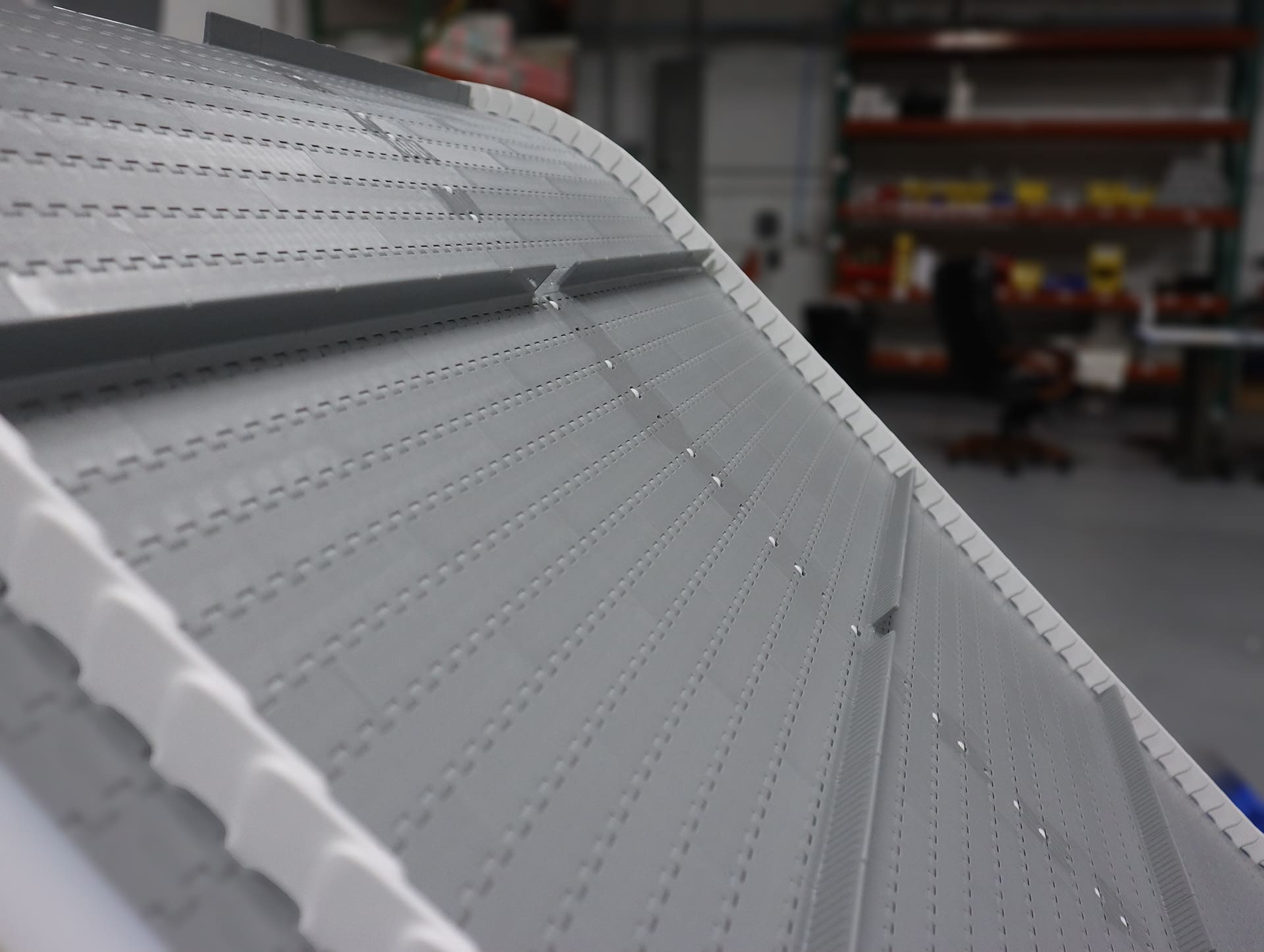

• Pin joined plastic flat top chain design with a 1” pitch, 44″wide x 192″ long with 1″ tall stream line cleats
• 1″ tall articulating belt side guard on each side of the belt
• Cleats on 12″ centers

Motor :

• Moto-Vario Hollowbore 208/230/460/3/60 Motor

Supports:

• Conveyor frame constructed of 11 ga. Stainless steel, Z design
• Adjustable with +/- 2” leveling feet
