See How PARTX Elevates Your Automation
PartX delivers reliable, high-performance part presentation built for speed, consistency, and flexibility. As the exclusive North American distribution partner, Performance Feeders brings PartX flex feeding technology to manufacturers looking for practical, robot-ready automation.
WHERE FLEX FEEDERS DELIVER THE MOST VALUE
Complex Geometries
Easily feeds irregular, soft, tangled, or hard-to-orient parts into the next stage of automation.
High-Mix Production
High-mix, low-volume production with frequent part changes
Multiple Part Variations
Production lines requiring multiple part and size variations, and frequent changeovers.
Reduced Downtime
Duo tray system supports continuous part availability, helping reduce interruptions and improve production efficiency.
Built for Part Variance
Manage variations in size, shape, material, and orientation
Multiple Platform Sizes
Supports micro components to larger parts
Robot-Ready
Positions parts for accurate, repeatable robotic picking
Overview
What is PartX?
The PartX flexible feeding system uses single or duo vibrating trays to orient and present parts for robotic picking. Built for high-speed manufacturing, PartX helps reduce downtime, simplify changeovers, and improve production flexibility, with optional purge functionality and cleanroom-ready configurations.
Technology
How does PartX work?
A backlit tray aids the vision system in identifying part position and orientation, allowing the robot to pick parts with precision across different geometries. PartX interfaces with the vision system to adjust lighting and vibration, supporting efficient, hands-off part presentation.
Benefits
Why use PartX?
- Value-added benefits:
- Offers dual tray systems that increase production output from the robot
- Interfaces with any robot brand
- Integrates easily via Ethernet IP / Profinet
- Handles part sizes ranging from 0.02″ to 7.9″ (0.5 – 200 mm)

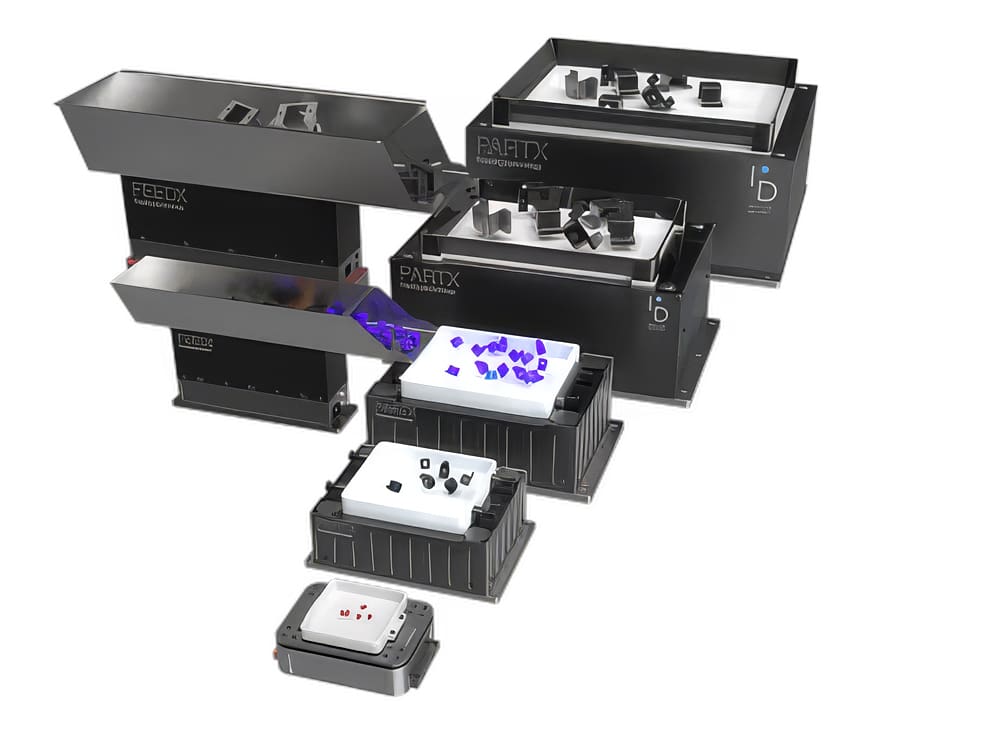

THE PARTX PRODUCT FAMILY
All parameters share these capabilities:
- Pick Range: Configurable (0-60, 0-20)
- Part Handling: Single-part or optionable multi-part feeding
- Quick Changeover
- Vision system integration

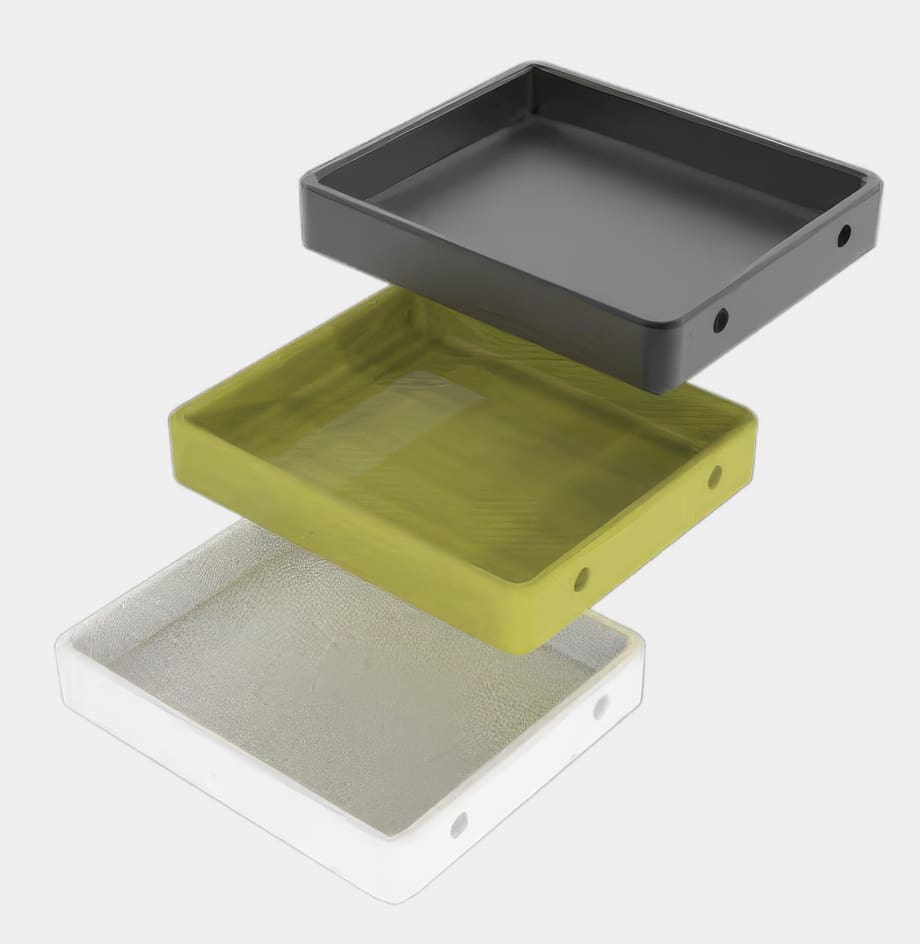

- Custom Design Platforms
- FDA – Compliant (Food and Drug Administration)
- ESD – Safe (Electrostatic Discharge or Antistatic)
- Anti-Stick
- Anti-Roll Surfaces

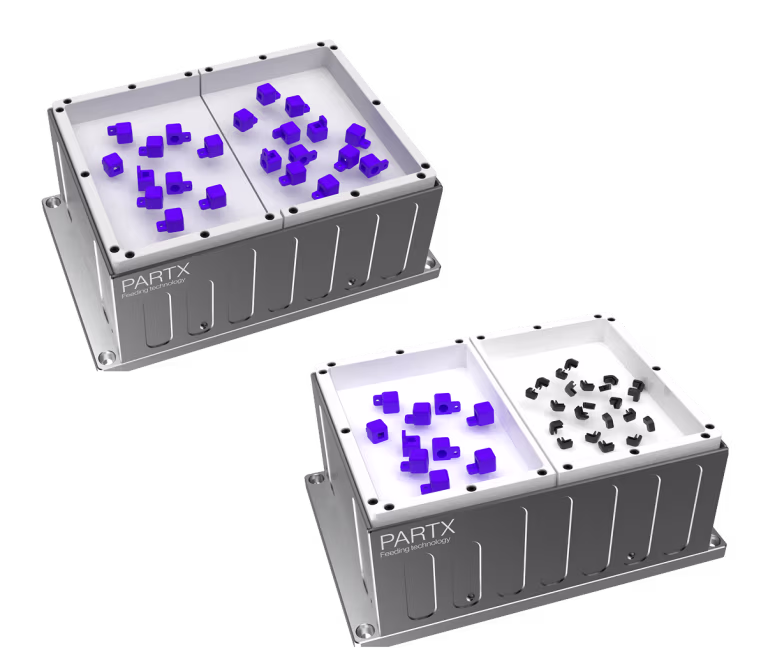

PartX Duo
- Separate physical feeding areas, constant cycle time (both parts), independent dosing per part
- 2 different parts (simultaneous)
- 2 separate physical feeding areas
- Can handle any geometry complexity from simple, complex and delicate
- Can be metal, rubber (part-dependent), plastic, and composite
- Independent tray control allows each tray to feed parts at its own pace
- Platform Size: 8.7″ X 11.8″ (220 X 300 mm)
- Part Size: 0.02 ″ – 2.4″ (0.5 – 60 mm)
PartX Micro
- Can handle any geometry complexity from simple, complex and delicate
- Can be metal, rubber (part-dependent), plastic, and composite
- Platform Size: 3.9″ X 3.9″ (100 X 100 mm)
- Part Size: 0.02″- 0.4″ (0.5 – 10 mm)
PartX S
- Can handle any geometry complexity from simple, complex and delicate
- Can be metal, rubber, plastic, and composite
- Purge, empty function available
- Platform Size: 5.9″ X 7.1″ (150 X 180 mm)
- Part Size: 0.02″ – 1.6″ (0.5 – 40 mm)
PartX 1
- Can handle any geometry complexity from simple, complex and delicate
- Can be metal, rubber, plastic, and composite
- Purge, empty function available
- Platform Size: 7.5″ X 9.3″ (190 X 235 mm)
- Part Size: 0.4″ – 2.4″ (10 – 60 mm
PartX 2
- Can handle any geometry complexity from simple, complex and delicate
- Can be metal, rubber, plastic, and composite
- Purge, empty function available
- Platform Size: 10.8” X 15.8″ (275 X 400 mm)
- Part Size: 0.8” – 4.7″ (20 – 120 mm)
PartX Max
- Can handle simple and complex (part-dependent) geometries
- Can be metal, rubber (part-dependent), plastic, and composite
- Purge, empty function available
- Platform Size: 17.7″ X 21.7″ (450 X 550 mm)
- Part Size: 2.0″ – 7.9″ (50 – 200 mm)
PartX Clean
- Cleanroom ISO 5 (Class 100), IP67 Washdown,
- Pharma/medical GMP
- Can handle any geometry complexity from simple,
- complex and delicate
- Can be rubber (part dependent), plastic,
- and composite
- Platform Size: 7.9″ X 7.9″ (200 X 200 mm)
- Part Size: 0.02″ – 1.6″ (0.5 – 40 mm)
PARTX SPECIFICATIONS
| Model | Platform Size | Typical Part Size | Typical Part Weight |
|---|---|---|---|
| PartX Micro | 3.94" x 3.94" | 0.19" - 0.39" | < 0.176 oz |
| PartX S | 5.91" x 7.09" | 0.19" - 0.39" | < 0.176 oz |
| 0.39" - 1.57" | 0.176 - 1.76 oz | ||
| PartX 1 | 7.48" x 9.25" | 0.39" - 1.57" | < 0.176 oz |
| 0.79" - 2.36" | 0.178 - 1.76 oz | ||
| 1.76 - 17.6 oz | |||
| PartX 2 | 10.83" x 15.75" | 0.79" - 2.36" | 0.18 - 1.76 oz |
| 1.97" - 4.72" | 1.76 - 17.6 oz | ||
| 1.76 - 17.6 * | |||
| PartX Max | 17.62" x 21.65" | 1.97" - 4.72" | 1.76 - 17.6 oz |
| 3.9" - 7.87" | > 17.6 oz | ||
| PartX Duo | 8.66" x 11.81" | 0.19" - 0.39" | < 0.176 oz |
| 0.39" - 1.57" | 0.18 - 1.76 oz | ||
| 0.79" - 2.36" | |||
| PartX Clean | 7.87" x 7.87" | 0.19" - 0.39" | < 0.176 oz |
| 0.39" - 1.57" |
| Model | Platform Size | Typical Part Size | Typical Part Weight |
|---|---|---|---|
| PartX Micro | 100 x 100 mm | 0.5–10 mm | < 5 g |
| PartX S | 150 x 180 mm | 0.5 – 10 mm | < 5 g |
| 10 - 40 mm | 5 - 50 g | ||
| PartX 1 | 190 x 235 mm | 10 - 40 mm | < 5 g |
| 20 - 60 mm | 5 - 50 g | ||
| 50 - 500 g | |||
| PartX 2 | 275 x 400 mm | 20 - 60 mm | 5 - 50 g |
| 50 - 120 mm | 50 - 500 g | ||
| > 500 g * | |||
| PartX Max | 450 x 550 mm | 50 - 120 mm | 50 - 500 g |
| 100 - 200 mm | > 500 g | ||
| PartX Duo | 220 x 300 mm | 0.5 - 10 mm | < 5 g |
| 10 - 40 mm | 5 - 50 g | ||
| 20 - 60 mm | |||
| PartX Clean | 200 x 200 mm | 0.5 - 10 mm | < 5 g |
| 10 - 40 mm |
